Integrate this step into your Zapier workflow to:
  • Add text, images and signatures to a PDF
  • Fill PDF form fields
  • Create a new PDF from a template

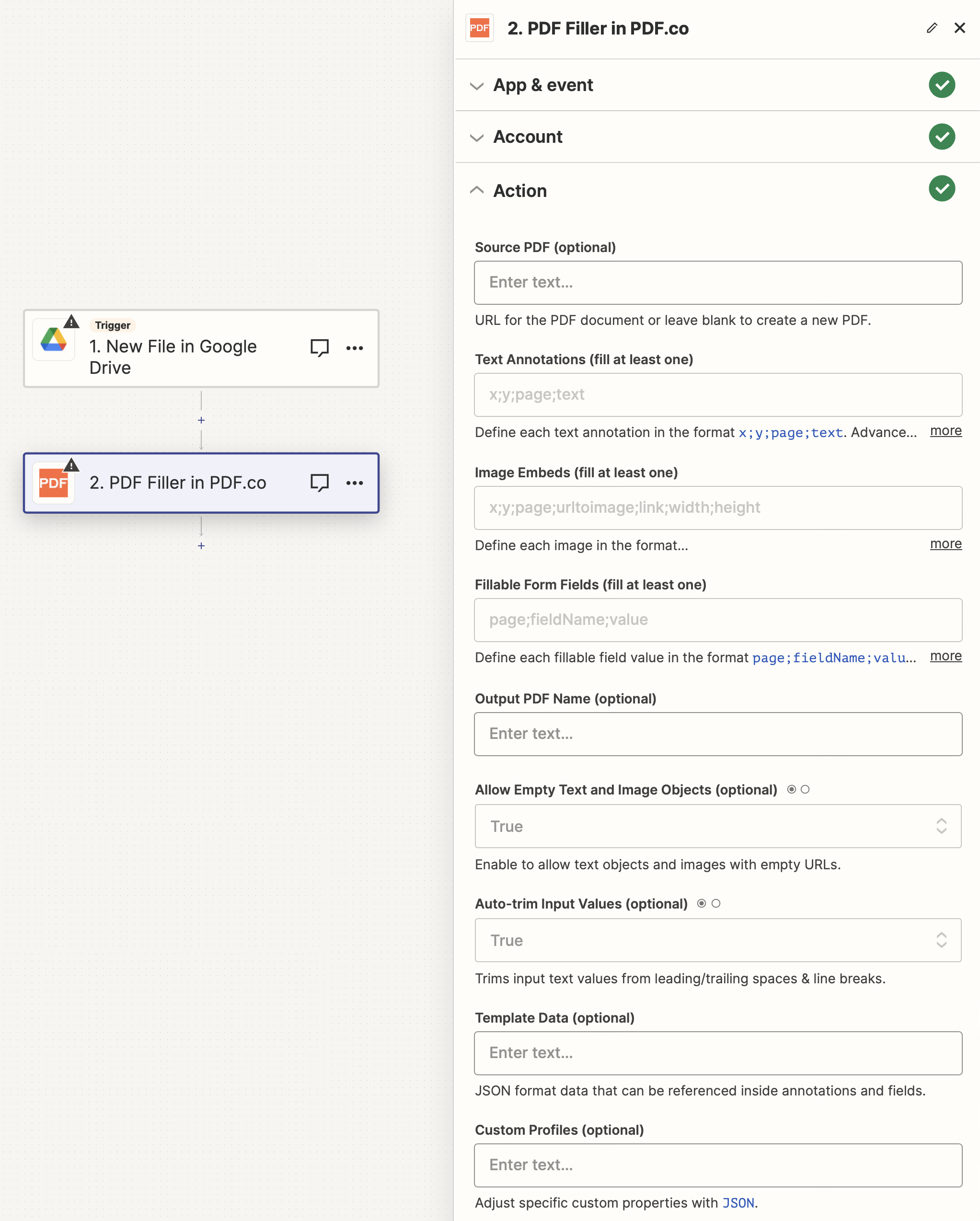

Zapier Step

​
Input

NameDescriptionRequired
Source PDFProvide the URL of the PDF document, or leave blank to create a new PDF from scratch.No
Text AnnotationsSpecify each text annotation using the format x;y;page;text. See Text Annotations for more information.Fill at least one
Image EmbedsDefine each image using the format x;y;page;urltoimage;link;width;height. Use PDF.co PDF Inspector to find or measure PDF coordinates.Fill at least one
Fillable Form FieldsSpecify each fillable field value in the format page;fieldName;value. Use the PDF.co Info Tool or the Get PDF Info PDF.co step for field names in PDF forms.Fill at least one
Output PDF NameName of the output PDF file.No
Allow Empty Text and Image ObjectsEnable to process text objects and images even with empty URLs.No
Auto-trim Input ValuesAutomatically removes leading/trailing spaces and line breaks from input text values.No
Template DataInput data in JSON format that can be used within annotations and fields.No
Custom ProfilesA JSON string which adds options for the conversion process. See Custom Profiles for more.No

​
Data Format and Examples

​
Text Annotations

This parameter represents one or more text objects to add to a PDF. Each text object is made of a parameter separated by the ; symbol. It uses the format: x;y;pages;text;fontSize;fontName;fontColor;link;transparent;width;height;alignment

​
EXAMPLE Sample code

Adds a text annotation, which links to www.pdf.co, to the 20,20 coordinate of all pages in a document (by using: 0-). The text annotation uses the Arial font in red (by using FF0000) with a font size of 24. It has a transparent background, a defined 300 by 200 bounding box and with text aligned to the right.
20;20;0-;Test Text;24;Arial;FF0000;www.pdf.co;true;300;200;right

​
EXAMPLE Sample code

Where 24 is the font size. You can also add styles along with the font size using the following modifiers:
  • +bold
  • +italic
  • +underline
  • +strikeout
20;20;0-;Testing Text;24+bold+italic;Arial

​
EXAMPLE Sample code

Another example with bold, italic, underline and strikeout styles would be as follows:
250;20;0-;Text1|250;30;0-;Text2|250;50;0-;Text3

​
EXAMPLE Sample code

To put multiple objects, just use the | separator between objects.
20;20;0-;Test Text;24;Arial;FF0000;www.pdf.co;true;300;200;right
If you need to insert a line break then use \n or {{$$newLine}}.

​
Image Embeds

Each image or PDF object can be defined as: x;y;pages;urlToImageOrPDF;linkToOpen;width;height

​
EXAMPLE Sample code

20;80;0-;bytescout-com.s3-us-west-2.amazonaws.com/files/pdf-edit/logo.png;www.pdf.co;200;200

​
EXAMPLE Sample code

To put multiple objects, just use the | separator between objects.
100;180;0-;bytescout-com.s3-us-west-2.amazonaws.com/files/pdf-edit/logo.png|400;180;0-;bytescout-com.s3-us-west-2.amazonaws.com/files/pdf-edit/logo.png;www.pdf.co;200;200
You can also use a base64 datauri embedded image or a filetoken:// link to a file from PDF.co Built-In Files Storage.

​
Fillable Form Fields

To fill fields in a PDF form, use the format page;fieldName;value. To define the font name, size and style for the form input, use the following schema: page;fieldName;Field Text;size+bold+italic+underline+strikeout;FontName

​
EXAMPLE Sample code

0;editbox1;text for my edit box;12+bold;Arial

​
EXAMPLE Sample code

To fill a checkbox, use true against the target checkbox object.
0;checkbox1;true

​
EXAMPLE Sample code

To separate multiple objects, use the | separator.
0;editbox1;text for my edit box;12+bold;Arial|0;editbox2;text for another edit box;12;Arial|0;checkbox1;true

​
Source PDF URL & Google

When using Google Drive, it’s typically recommended to choose the File option. For more advanced file integration techniques, see Integrating File Sources with pdf.co.
Google File

​
Output

NameDescription
urlThe temporary URL on the PDF.co file server.
outputLinkValidTillA timestamp which indicates how long the url will be available for.
errorDetails of any errors (if any).
statusThe response status code. If all good this will be 200.
nameThe name of the file.
jobIdThe unique identifier for the job.
creditsThe credits spent on the process.
remainingCreditsThe credits left on your account.
durationThe time it took for the process.

​
Custom profiles

Use Custom Profiles to enhance your workflow with additional processing options. Enter JSON configuration to customize OCR settings, output format, text extraction methods, and more.
Custom Profiles

​
Sample JSON

{ "ImageOptimizationFormat": "JPEG", "JPEGQuality": 25, "ResampleImages": true, "ResamplingResolution": 120, "GrayscaleImages": true }
You can use any regular API parameter from the API Reference within Zapier using the std_params feature in profiles. The std_params enables the definition of regular API parameters in a JSON format, See Standard Parameters for detailed documentation and examples.
ParameterTypeDefaultDescription
outputDataFormatstring-If you require your output as base64 format, set this to base64
Pages[0].SetCropBox()array[string]-Crop a PDF file using an array to define the crop area. The crop box is defined by a rectangle [x, y, width, height] in PDF points (1 Point = 1/72 inches).
DisableLigaturesbooleanfalseTo disable ligaturization, for example for Hebrew, use the following:
FlattenDocument()booleanfalseFlattening a document renders it as read-only. Handy if you want to remove editing or copying capability.
DataEncryptionAlgorithmstring-Controls the encryption algorithm used for data encryption. See User-Controlled Encryption for more information. The available algorithms are: AES128, AES192, AES256.
DataEncryptionKeystring-Controls the encryption key used for data encryption. See User-Controlled Encryption for more information.
DataEncryptionIVstring-Controls the encryption IV used for data encryption. See User-Controlled Encryption for more information.
DataDecryptionAlgorithmstring-Controls the decryption algorithm used for data decryption. See User-Controlled Encryption for more information. The available algorithms are: AES128, AES192, AES256.
DataDecryptionKeystring-Controls the decryption key used for data decryption. See User-Controlled Encryption for more information.
DataDecryptionIVstring-Controls the decryption IV used for data decryption. See User-Controlled Encryption for more information.
