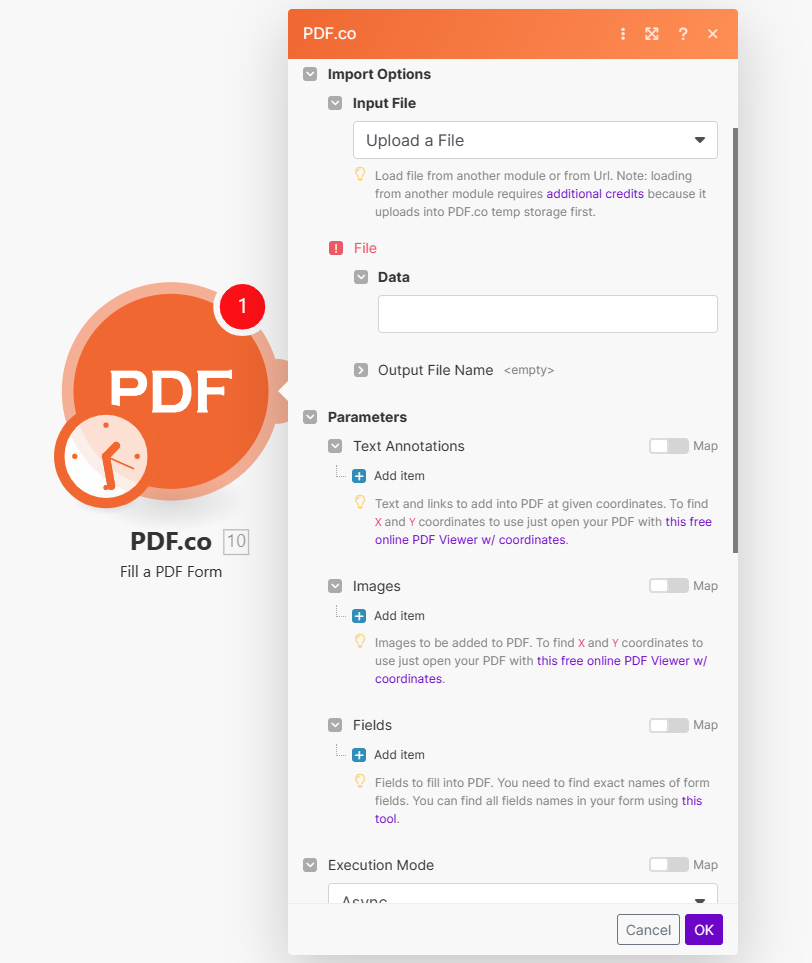

Input
| Name | Description | Required |
|---|---|---|
| Import Options | Choose the input source, either Upload a File or Import PDF from URL. | Yes |
Upload a File
| Name | Description | Required |
|---|---|---|
| Data | Upload a file using raw binary data from another module. Note: This requires additional credits as it first uploads to PDF.co Temporary Files Storage. | Yes |
| Output File Name | Specify a custom file name for the output file. | No |
| Name | Description | Required |
|---|---|---|
| URL | Provide the URL to the source PDF document, or a filetoken:// link from PDF.co Built-In Files Storage. If you use another cloud service such as Google Drive or Dropbox ensure the link is publicly accessible. Leave empty to create a new PDF file. | No |
| Output File Name | Specify a custom file name for the output file. | No |
Parameters
Text Annotations
| Name | Description | Required |
|---|---|---|
| X | Determine the X coordinate for text placement. Use PDF.co PDF Inspector to find or measure PDF coordinates. | Yes |
| Y | Specify the Y coordinate. Use PDF.co PDF Inspector to find or measure PDF coordinates. | Yes |
| Text | Enter the text for the text object. Macros like line breaks (\n or {{$$newLine}}) or page numbers ({{$$PageNumber}}) can be inserted. | No |
| Pages | Default is 0 (first page). Use comma-separated ranges for multiple pages like 0,1-2,5,7-. 7- means from the 7th to the last page. Negative pages like -2 for second last page. | No |
| Font Size | Specify the font size for the text. | No |
| Font Italic | Set the text to italic style. | No |
| Font Bold | Set the text to bold style. | No |
| Font Strikeout | Add a strikeout effect to the text. | No |
| Font Underline | Underline the text. | No |
| Font Name | Specify the font name. | No |
| Font Color | Set the font color using HTML color codes, e.g., CCBBAA. | No |
| Link | Add an optional clickable link (starting with http://, https://, mailto:[email protected], etc.). | No |
| Transparent | Set the text background as transparent. | No |
| Width | Define the width of the text box. Coordinates start at the top left (use the provided viewer to measure coordinates). | No |
| Height | Define the height of the text box. Coordinates start at the top left (use the provided viewer to measure coordinates). | No |
| Alignment | Set text alignment as Center, Right, or Left. Default is Center. | No |
| Type | Choose the object type: regular text, input control fields, or checkboxes. | No |
| Id | Optional. For input fields (text fields or checkboxes), set the field name (or id). | No |
Images
Images| Name | Description | Required |
|---|---|---|
| X | Determine the X coordinate for text placement. Use PDF.co PDF Inspector to find or measure PDF coordinates. | Yes |
| Y | Specify the Y coordinate. Use PDF.co PDF Inspector to find or measure PDF coordinates. | Yes |
| URL to the source image. | Provide a URL to the image, a base64 encoded image, or a filetoken:// link from PDF.co Built-In Files Storage. | Yes |
| Pages or pages range. | Default is 0 (first page). Use comma-separated ranges for multiple pages like 0,1-2,5,7-. 7- means from the 7th to the last page. Negative pages like -2 for second last page. | No |
| Link | Optional link (http://, https://, mailto:[email protected] or similar) to open on click. | No |
| Width | Specify the width for the image. Leave empty for automatic detection. | No |
| Height | Specify the height for the image. Leave empty for automatic detection. | No |
Fields
Fields| Name | Description | Required |
|---|---|---|
| Field Name | Specify the exact names of the form fields that you intend to fill. | Yes |
| Text | Enter the text for the text object. Macros like line breaks (\n or {{$$newLine}}) or page numbers ({{$$PageNumber}}) can be inserted. | No |
| Page or pages range. | Default is 0 (first page). Use comma-separated ranges for multiple pages like 0,1-2,5,7-. 7- means from the 7th to the last page. Negative pages like -2 for second last page. | No |
| Font Size | Specify the font size for the text. | No |
| Font Italic | Set the text to italic style. | No |
| Font Bold | Set the text to bold style. | No |
| Font Strikeout | Add a strikeout effect to the text. | No |
| Font Underline | Underline the text. | No |
| Font Name | Specify the font name. | No |
| Font Color | Set the font color using HTML color codes, e.g., CCBBAA. | No |
| Name | Description | Required |
|---|---|---|
| Template Data | Use optional JSON data to reference inside annotations and fields, for example, [[variable1]] with JSON data like { 'variable1': 'hey hey'}. | No |
| Execution Mode | Select Sync for small tasks up to 10 seconds. Choose Async for standard jobs, or Async For Large Docs for tasks over 30 seconds. Use Job Check module for retrieving results in large tasks. | No |
| Profiles | Add custom options for the process in a JSON string format. See API Profiles for more details. | No |
| Output Links Expiration | Set the expiration time in minutes for output links. Default is 60 minutes. Increase this limit with a Business Plan or higher, see plans here for details. | No |
| Export Type | Choose between Download a File or JSON Output. Default is Download a File. | No |
Integrating External File Sources
Streamline your Make workflows with external file sources like Google Drive and Dropbox using their unique actions. Discover efficient integration strategies in our guide: File Source Integrations in Make.
Output
| Name | Description |
|---|---|
url | This is the temporary URL provided by the PDF.co file server. |
Data | Represents the output binary data. This data is generated only when the Export Type option is set to Download a File. |
Status | Indicates the response status code. A success status is returned if the operation is successful. |
Page Count | The total number of pages in the output PDF. |
outputLinkValidTill | Specifies the timestamp until which the url remains accessible. |
error | Provides details about any errors encountered during the process, if applicable. |
name | The designated name of the output file. |
Job Id | A unique identifier assigned to the job. |
credits | The amount of credits utilized for the process. |
Remaining Credits | Displays the balance of credits available in your account. |
duration | The duration of time the process took to complete. |
Profiles
To display the Profiles fields, you must enable Advanced Settings by clicking the toggle:
Here’s an example of a Custom Profiles input:
| Parameter | Type | Default | Description |
|---|---|---|---|
outputDataFormat | string | - | If you require your output as base64 format, set this to base64 |
Pages[0].SetCropBox() | array[string] | - | Crop a PDF file using an array to define the crop area. The crop box is defined by a rectangle [x, y, width, height] in PDF points (1 Point = 1/72 inches). |
DisableLigatures | boolean | false | To disable ligaturization, for example for Hebrew, use the following: |
FlattenDocument() | boolean | false | Flattening a document renders it as read-only. Handy if you want to remove editing or copying capability. |
DataEncryptionAlgorithm | string | - | Controls the encryption algorithm used for data encryption. See User-Controlled Encryption for more information. The available algorithms are: AES128, AES192, AES256. |
DataEncryptionKey | string | - | Controls the encryption key used for data encryption. See User-Controlled Encryption for more information. |
DataEncryptionIV | string | - | Controls the encryption IV used for data encryption. See User-Controlled Encryption for more information. |
DataDecryptionAlgorithm | string | - | Controls the decryption algorithm used for data decryption. See User-Controlled Encryption for more information. The available algorithms are: AES128, AES192, AES256. |
DataDecryptionKey | string | - | Controls the decryption key used for data decryption. See User-Controlled Encryption for more information. |
DataDecryptionIV | string | - | Controls the decryption IV used for data decryption. See User-Controlled Encryption for more information. |
